Usage

Installing cmweather

cmweather can be installed in three ways:

conda

Using the conda package manager that comes with the Anaconda/Miniconda/Mamba distribution:

$ mamba install cmweather --channel conda-forge

pip

Using the pip package manager:

$ python -m pip install cmweather

Development version

To install a development version from source:

$ git clone https://github.com/openradar/cmweather
$ cd cmweather
$ python -m pip install -e .

Use cmweather In Your Scripts/Notebooks

You can use cmweather colormaps as you would use matplotlib colormaps in your workflow.

The first step is to import cmweather.

import cmweather

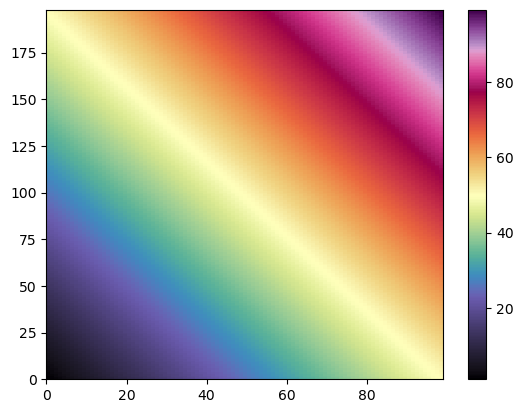

RECOMMENDED: Try out a Color Vision Deficiency (CVD) Friendly Colormaps

It is recommended you try one of the CVD-friendly colormaps included in cmweather, such as ChaseSpectral

import cmweather
import numpy as np
import matplotlib.pyplot as plt

# Create some synthetic data
x = np.arange(1, 100)
y = np.arange(1, 100, .5)
x_2d, y_2d = np.meshgrid(x, y)
temps = (x_2d + y_2d)/2

# Plot our data and add a colorbar
color = plt.pcolormesh(temps, cmap='ChaseSpectral')
plt.colorbar(color);

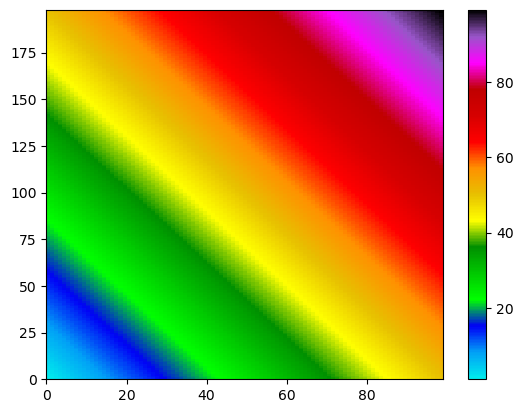

Using “Traditional” Colormaps

We can also use other colormaps such as the National Weather Service (NWS) Reflectivity (NWSRef) colormap with our plot

import cmweather
import numpy as np
import matplotlib.pyplot as plt

# Create some synthetic data
x = np.arange(1, 100)
y = np.arange(1, 100, .5)
x_2d, y_2d = np.meshgrid(x, y)
temps = (x_2d + y_2d)/2

# Plot our data and add a colorbar
color = plt.pcolormesh(temps, cmap='NWSRef')
plt.colorbar(color);

A full list of colormaps can be found in the Reference section of the docs
